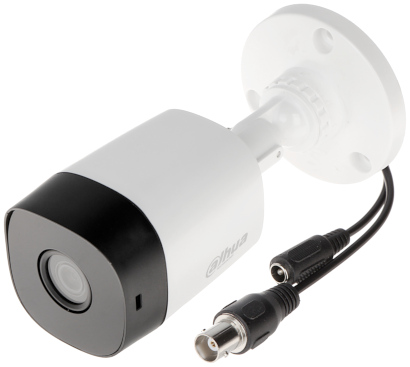

CAMERA AHD, HD-CVI, HD-TVI, PAL HAC-B1A51-0360B 5 Mpx 3.6 mm DAHUA
Code: HAC-B1A51-0360B

Description:
Megapixel camera with 1/2.7″ CMOS sensor and AHD / HD-CVI / HD-TVI / PAL interface. The DAHUA Cooper series product has been designed to minimize costs while maintaining high quality and ease of use.

The AHD / HD-CVI / HD-TVI interface enables analog video transmission via coaxial cable at a maximum resolution of 8 Mpx (4K UHD). The transmission is delay-free, and the image retains its original high quality.

When transmitting video over twisted pair cable with impedance matching transformers, signal reflections and crosstalk may occur.

Note! The camera is set by default to HD-CVI standard. The standard can be changed via the OSD menu available through a DAHUA recorder.

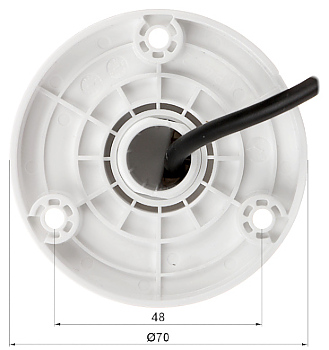

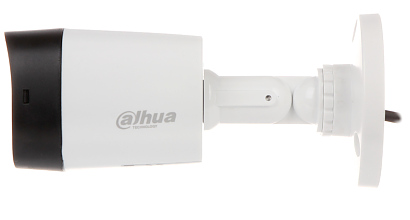

The camera meets the IP67 protection rating. The integrated 3-Axis mount allows adjustment in three planes, enabling installation at virtually any angle.

Specifications:

Standard: AHD, HD-CVI, HD-TVI, PAL

Image sensor: 1/2.7″ Progressive Scan CMOS

Sensor size: 5 Mpx

Resolution:
• HD-CVI: 2880×1620 (4.7 Mpx), 2560×1440 (3.7 Mpx), 1920×1080 (1080p)
• AHD/HD-TVI: 2560×1440 (3.7 Mpx)
• CVBS: 960×576 (960H)

Lens: 3.6 mm

Field of view: 88° (manufacturer data) / 76° (our tests)

IR illuminator range: 20 m

IR power adjustment: Automatic

Video output: AHD/HD-CVI/HD-TVI/PAL, 1 Vpp / 75 Ω

S/N ratio: > 65 dB

OSD menu: available via DAHUA recorder

Selected features:
• D-WDR – wide dynamic range
• 2D-DNR – digital noise reduction
• BLC/HLC – backlight / strong light compensation
• ICR – mechanical IR filter
• Mirror – mirror image function
• AGC – automatic gain control
• Auto white balance
• Privacy zones – up to 8
• Sharpness – image edge enhancement

Power supply: 12 V DC / 310 mA

Power consumption: ≤ 3.7 W

Housing: Compact, plastic

Color: White + Black

Ingress protection: IP67

Operating temperature: –40 °C … 60 °C

Weight: 0.15 kg

Dimensions: 149 × 70 × 70 mm

Manufacturer / Brand: DAHUA

Warranty: 3 years
