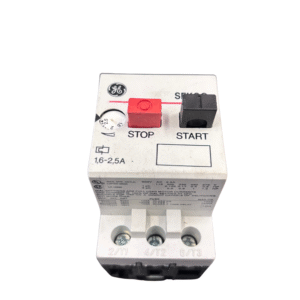

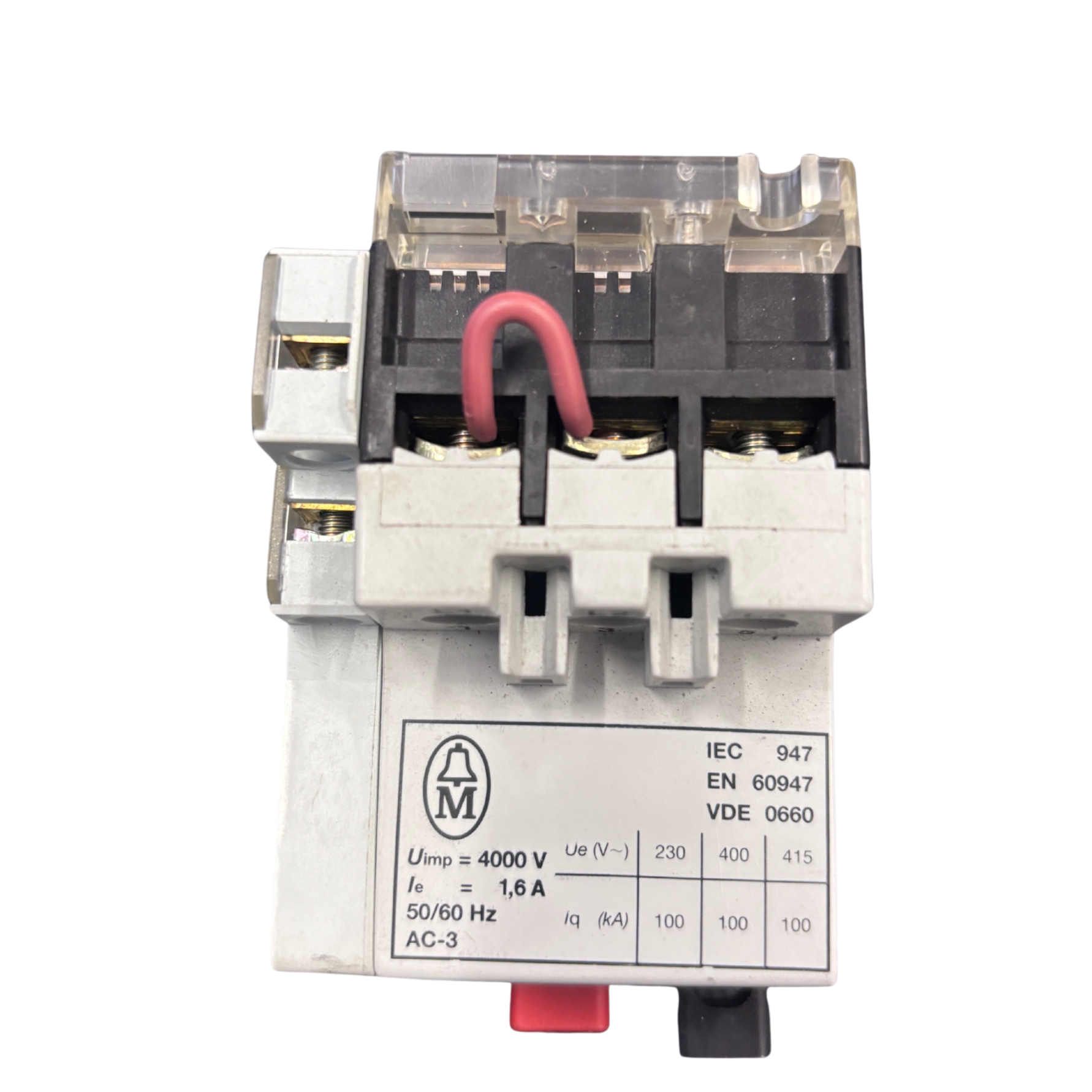

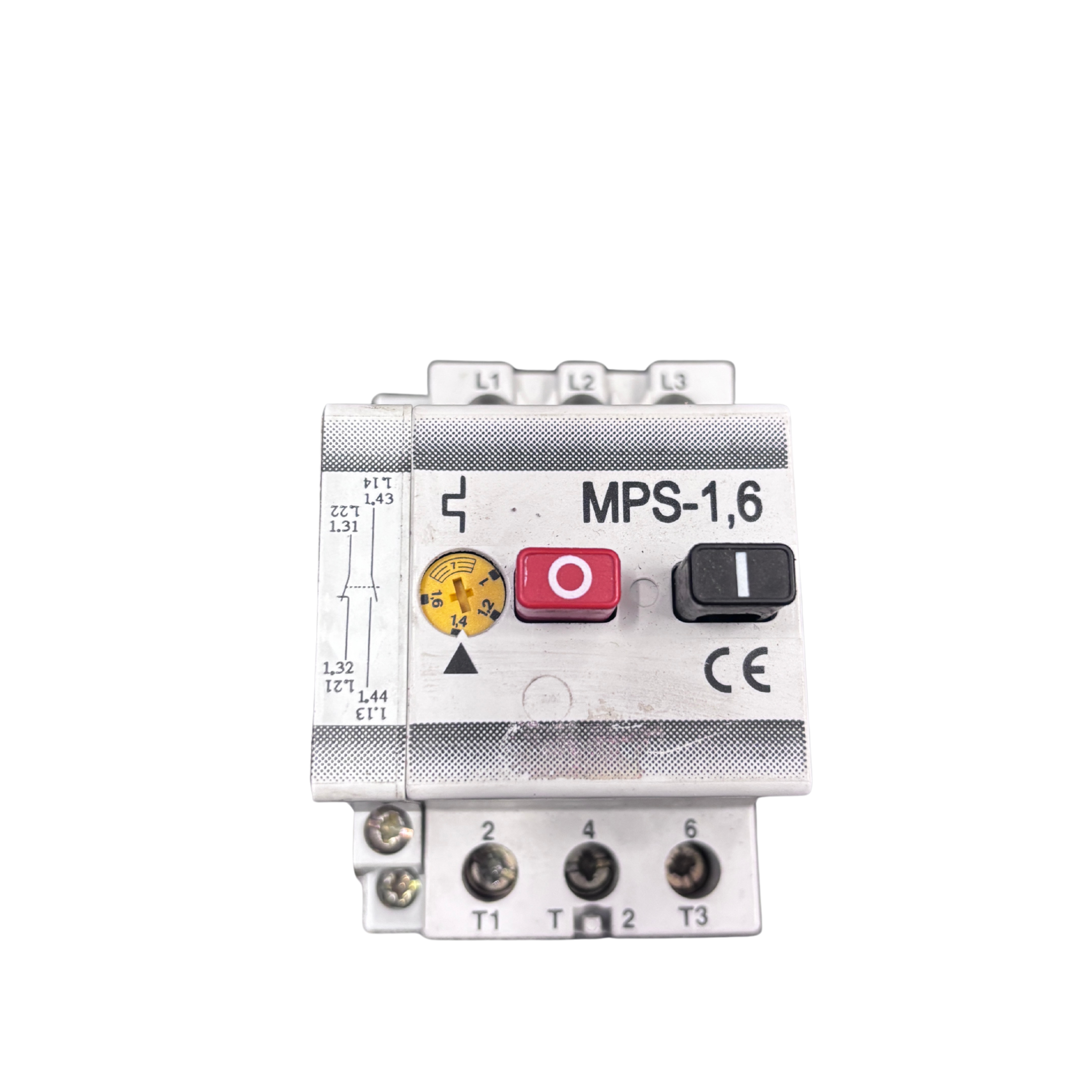

MPS-1.6 – manual motor starter 1.6 A AC-3 + auxiliary contact MPS-NH11

MPS-1.6 – manual motor starter 1.6 A AC-3, set with auxiliary contact MPS-NH11

Manual motor starter from the MPS series designed for manual control and protection of electric motors. Provides reliable protection against overload and short circuits, features integrated START/STOP pushbuttons, and easy adjustment. The set includes an auxiliary contact MPS-NH11 (1NO+1NC), enabling switch status signaling and automation integration.

Technical data:

Model: MPS-1.6

Rated current: 1.6 A

Utilization category: AC-3

Frequency: 50/60 Hz

Rated insulation voltage: 400 V (IEC 60947, VDE 0660)

Impulse withstand voltage: 4000 V

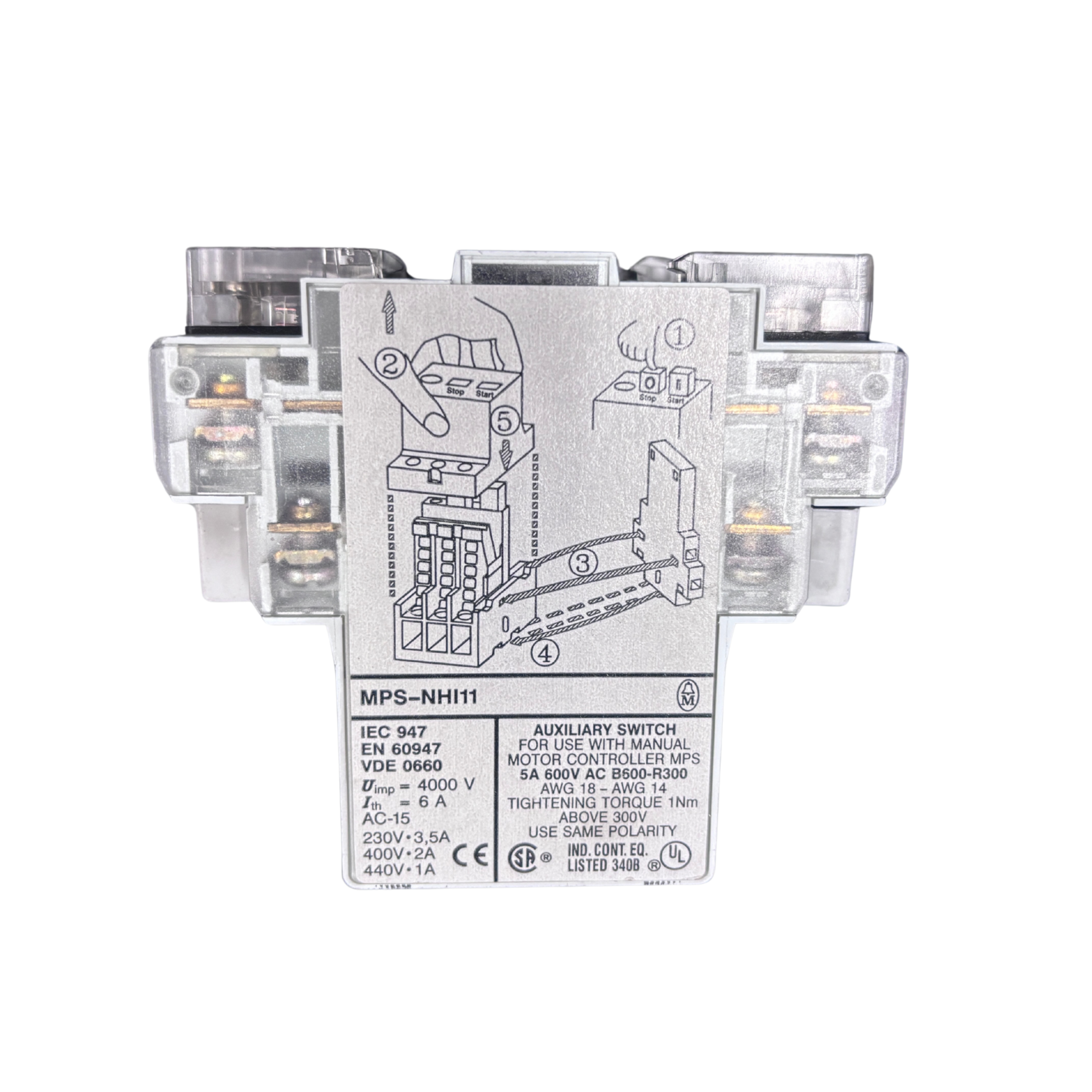

Set includes: MPS-1.6 motor starter + auxiliary contact MPS-NH11 (1NO+1NC, 5 A/600 V AC)

Applications / Benefits:
Perfect for protecting and manually controlling electric motors in industrial machinery and installations. Protects against overloads and short circuits, allows quick emergency shutdown, and thanks to the auxiliary contacts provides integration with PLC systems and operating status indication. The set delivers a compact, DIN-rail mountable solution.

Condition:
Used, tested and fully operational.
