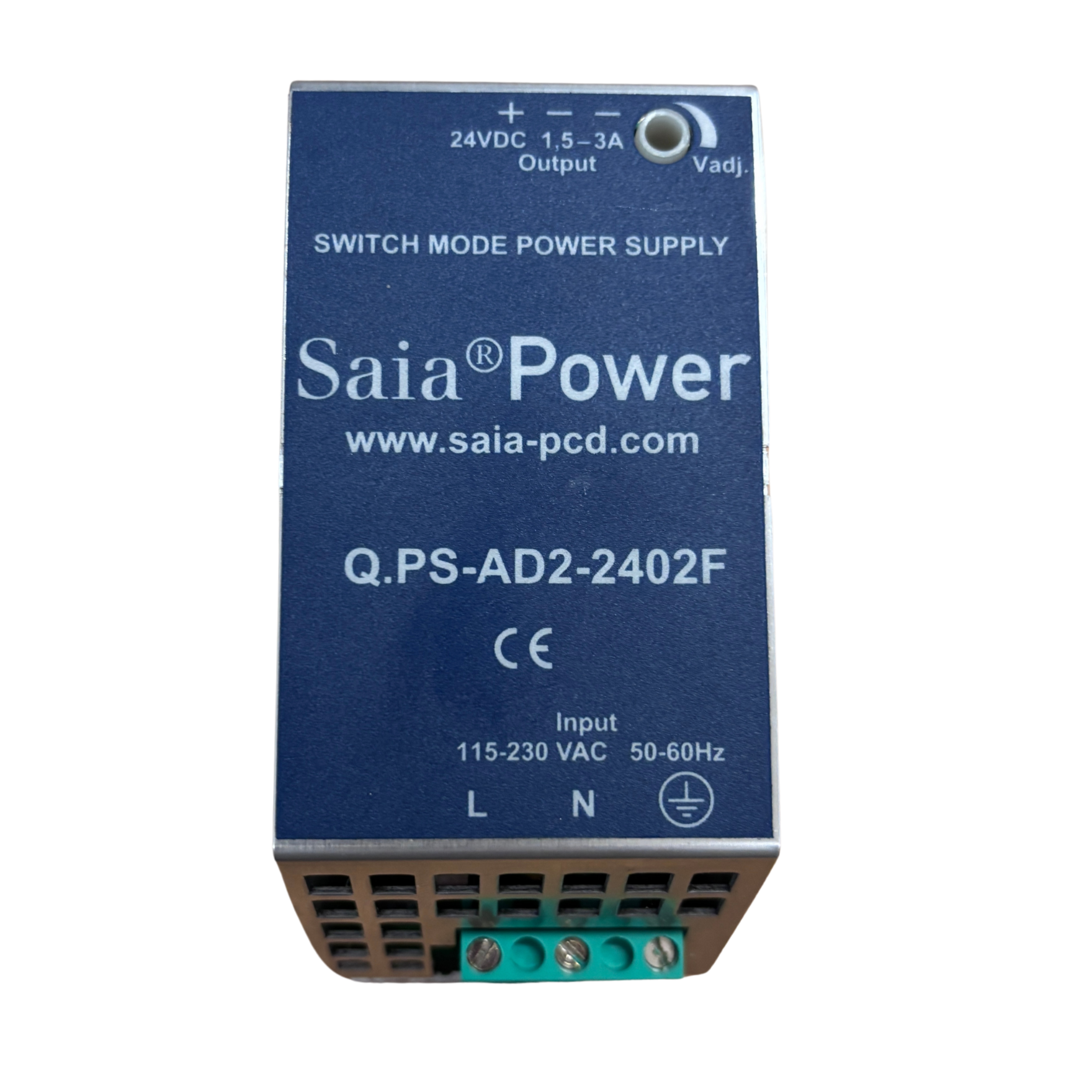

Saia-Burgess Q.PS-AD2-2402F – 24V DC Power Supply

Saia-Burgess Q.PS-AD2-2402F – 24V DC Power Supply

Technical Description:
The Q.PS-AD2-2402F power supply is a high-quality module from Saia-Burgess, designed for use in industrial automation systems and PLC controllers. It provides a stable 24 VDC output voltage, protecting connected devices against disturbances and fluctuations in the mains power supply.

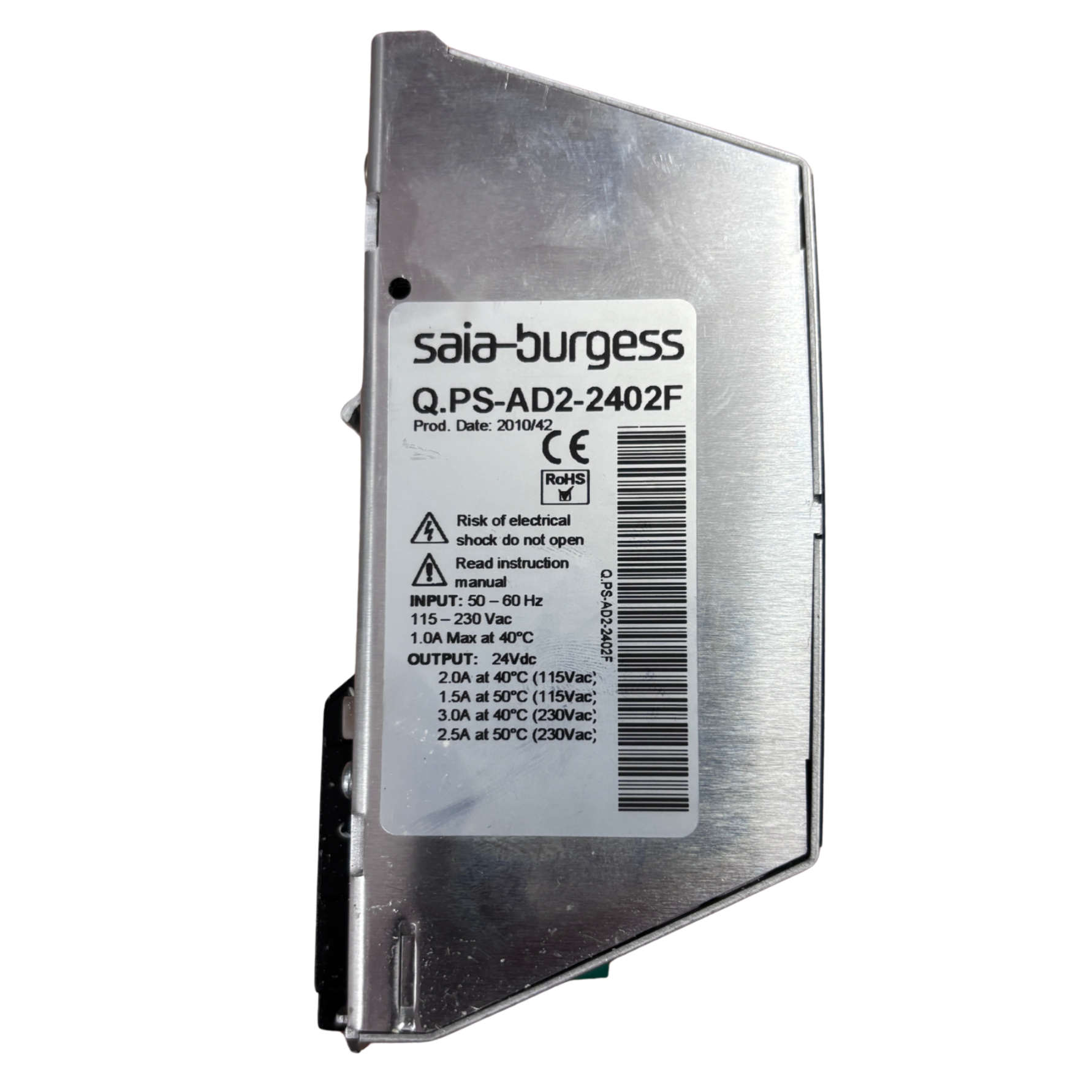

Input Parameters (INPUT):

Input voltage range: 115 – 230 VAC

Frequency: 50 – 60 Hz

Maximum input current: 1.0 A (at 40°C)

Output Parameters (OUTPUT):

Output voltage: 24 VDC

Load capacity:

2.0 A at 40°C (115 VAC)

1.5 A at 50°C (115 VAC)

3.0 A at 40°C (230 VAC)

2.5 A at 50°C (230 VAC)

Additional Information:

High efficiency and operational reliability.

Protection against overload and overheating.

Compact housing suitable for control cabinet installation.

Compliant with RoHS directives.

Manufacturer: Saia-Burgess Controls.

Model: Q.PS-AD2-2402F.

Applications:

Power supply for Saia PCD series PLC controllers.

Industrial and building automation.

Control and monitoring systems.

Devices requiring stable 24 VDC supply.
