UTC CONTROLLER FOR CAMERAS PFM820 DAHUA
Code: PFM820

Description:
The PFM820 controller allows switching compatible cameras between systems: AHD, HD-CVI, HD-TVI, CVBS.

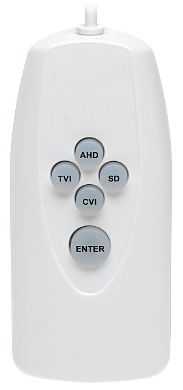

Standard change (AHD / HD-CVI / HD-TVI / PAL) is performed by holding the Enter button and then pressing the appropriate button for the desired standard.

Note! The device is intended for use only with Dahua cameras set to resolutions up to 2 Mpx.

Specifications:

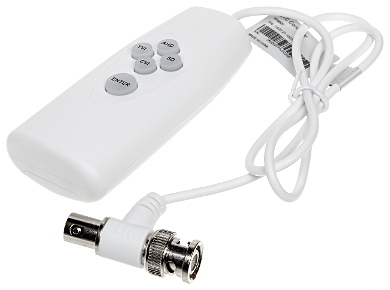

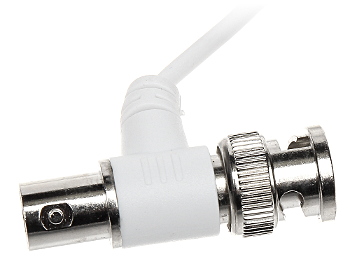

Input: 1 × BNC

Output: 1 × BNC

LED indicators (camera mode):
• Blue – AHD
• Orange – HD-CVI
• Green – HD-TVI
• Red – CVBS

Compatibility: AHD / HD-CVI / HD-TVI / CVBS – DAHUA cameras, max. 2 Mpx

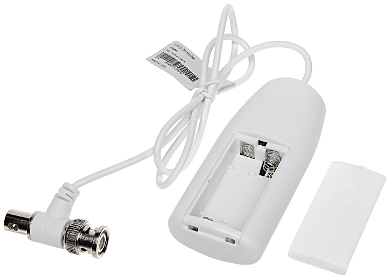

Power supply: 2 × LR03 (AAA) battery

Weight: 0.05 kg

Dimensions: 90 × 42 × 20 mm

Manufacturer / Brand: DAHUA

Warranty: 3 years
