AHD, HD-CVI, HD-TVI, CVBS CAMERA

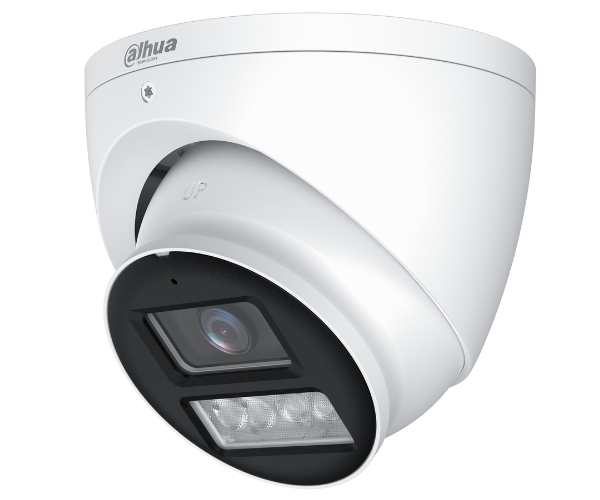

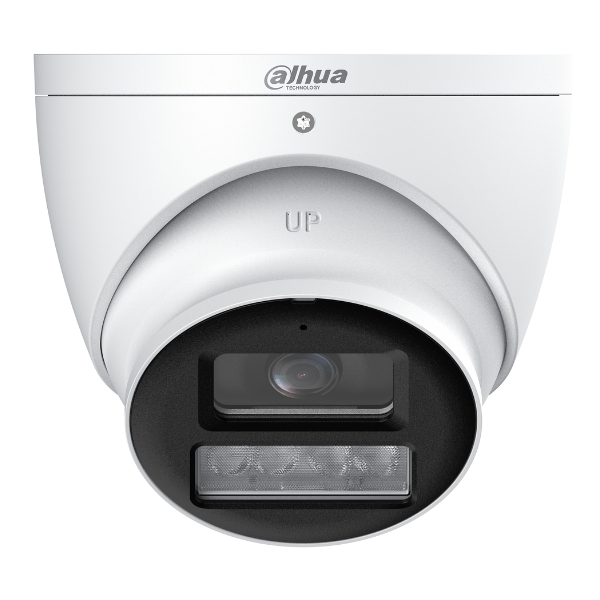

HAC-HDW1239T-A-LED-0280B-S3 Full-Color – 1080p 2.8 mm DAHUA

A megapixel camera with a 2 Mpx CMOS sensor and AHD / HD-CVI / HD-TVI / CVBS interface.
Note! The camera is set by default to HD-CVI standard. To change the camera standard, a PFM820 controller is required (available separately).

The AHD / HD-CVI / HD-TVI interface allows transmission of an analog video signal via coaxial cable at a maximum resolution of 8 Mpx (4K UHD). During transmission there are no delays, and the original high image quality is preserved.

When transmitting video via twisted-pair cable and impedance matching transformers, please note the possibility of signal reflections and signal crosstalk.
The camera meets the IP67 protection class.

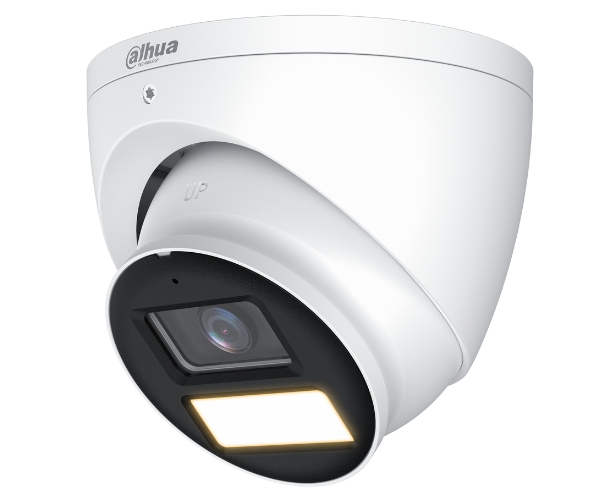

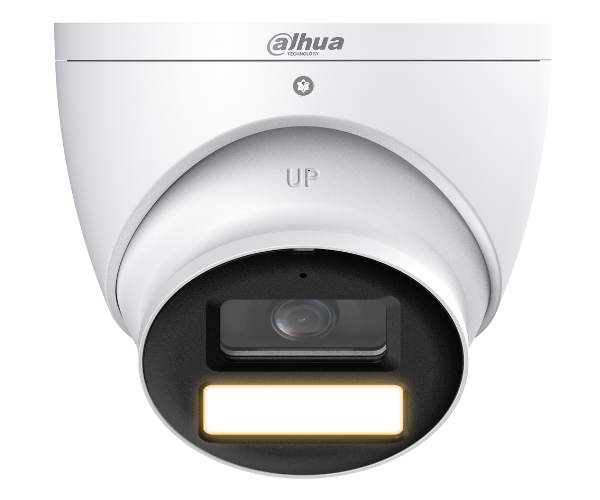

Note! Full-color series cameras do not have black-and-white mode. Thanks to the highly sensitive sensor and a built-in LED illuminator emitting visible white light, the device provides a clear, colorful image under any lighting conditions. Starlight technology ensures a clear, full-color image in low-light environments.

Standard:
AHD, HD-CVI, HD-TVI, CVBS
Image sensor:
Progressive Scan CMOS
Sensor size:
2 Mpx
Resolution:
1920 × 1080 – 1080p
960 × 576 – 960H, CVBS
Lens:
2.8 mm
Field of view:
101°
White light (LED) range:
40 m
Video output:
AHD / HD-CVI / HD-TVI / CVBS, 1 Vpp / 75 Ω
Audio:
Built-in microphone, audio transmission over coaxial cable – HD-CVI only
On-Screen Display (OSD) menu:
Available via DAHUA recorder

Selected features:

Full Color – full-color night vision
Smart Light+ – automatic illuminator power adjustment to avoid image overexposure
Option to disable LED illuminator
WDR – 130 dB wide dynamic range
3D-DNR – digital noise reduction
BLC/HLC – backlight / strong light compensation
Automatic white balance
Sharpness – edge enhancement
AGC – automatic gain control
Mirror – mirror image function
Privacy zones – up to 8

Technical details:

Power supply: 1
2 V DC / 650 mA
Power consumption:
≤ 7.79 W
Housing:
Dome, Metal
Ingress protection:
IP67
Color:
White
Operating temperature:
-40 °C … 60 °C
Weight:
0.47 kg

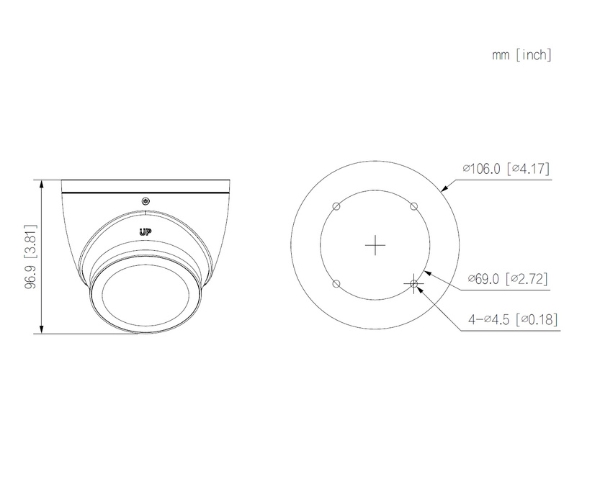

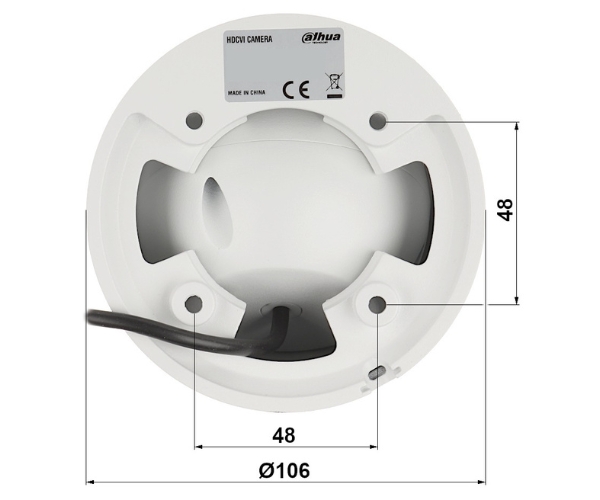

Dimensions:
Ø 106 × 97 mm
Manufacturer / Brand:
DAHUA
Warranty:
3 years
