IP CAMERA IPC-HDBW5449R1-ZE-LED-2712 FULL-COLOR – 4 Mpx 2.7…12 mm DAHUA
Code: IPC-HDBW5449R1-ZE-LED-2712

Description:
IP camera with an efficient H.264 / H.265 image compression algorithm ensuring clean and smooth video transmission at a maximum resolution of 4 Mpx.
The possibility of PoE power supply (802.3af) makes the device more versatile and easier to install. The FULL-COLOR series camera provides clear, full-color images even in very poor lighting conditions.

Specifications:

Standard: TCP/IP

Image sensor: 1/1.8″ Progressive Scan CMOS

Sensor size: 4 Mpx

Resolution:
• 2688×1520 (4 Mpx)
• 2560×1440 (3.7 Mpx)
• 2304×1296 (3 Mpx)
• 1920×1080 (1080p)
• 1280×960 (1.3 Mpx)
• 1280×720 (720p)

Lens: 2.7 … 12 mm

Field of view: 115° … 48° (manufacturer) / 106° … 47° (our tests)

White light LED range: 40 m

Sensitivity: 0.0005 Lux / F1.0 (color)

S/N ratio: > 56 dB

RS-485: –

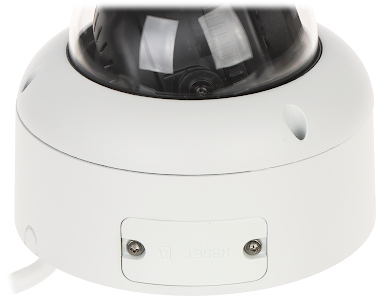

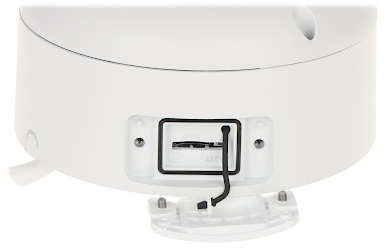

Memory card slot: Micro SD up to 256 GB (local recording)

Video compression: H.265+ / H.265 / H.264+ / H.264 / MJPEG

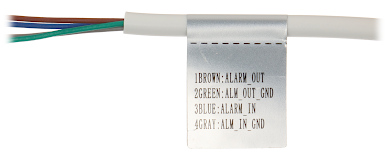

Alarm I/O: 1 / 1

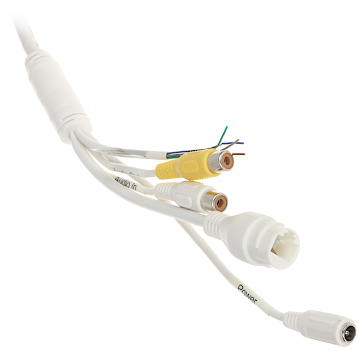

Audio:
• Built-in microphone
• Sound detection
• External microphone input
• Audio output
• Built-in speaker
• Audio transmission over network

Main stream: 25 fps @ 4 Mpx

Network interface: 10/100 Base-T (RJ-45)

Network protocols: IPv4/IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, IEEE 802.1x, SNMP

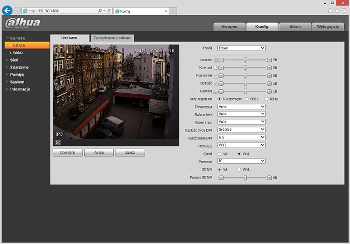

Web server: Built-in

Max. online users: 20

ONVIF: 20.12

Selected features:
• WDR – 140 dB wide dynamic range
• 3D-DNR – digital noise reduction
• ROI – quality improvement for selected areas
• BLC/HLC – backlight / strong light compensation
• Motion detection
• Privacy zones
• Mirror – image flip
• IVS analytics: intrusion, line crossing, fast movement, crowd gathering detection, parking detection, scene change, face detection, people counting, heat map

Mobile access: DMSS app (Android/iOS), P2P

Default IP address: 192.168.1.108

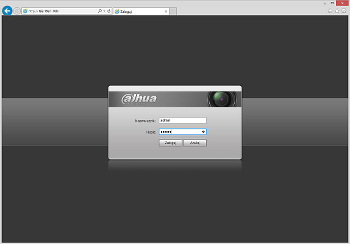

Default login/password: admin / (set at first startup)

Ports:
• WWW: 80, 37777
• PC: 37777
• Mobile: 37777
• ONVIF: 80

RTSP URL:
• Main stream: rtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0
• Sub stream: rtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1

Power supply: PoE (802.3af), ePoE, 12 V DC / 620 mA

Power consumption: ≤ 9.0 W (PoE), ≤ 7.4 W (12 V DC)

Housing: Dome – Metal + Plastic

Color: White

Ingress protection: IP67

Vandal resistance: IK10

Operating temperature: –30 °C … 60 °C

Weight: 0.75 kg

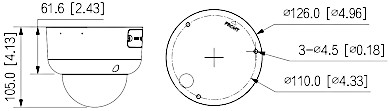

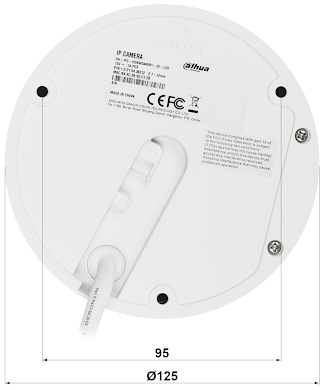

Dimensions: Ø 126 × 105 mm

Supported languages: PL, EN, CZ, FR, ES, NL, DE, RU, PT, IT

Manufacturer / Brand: DAHUA

Warranty: 3 years
